Product Summary

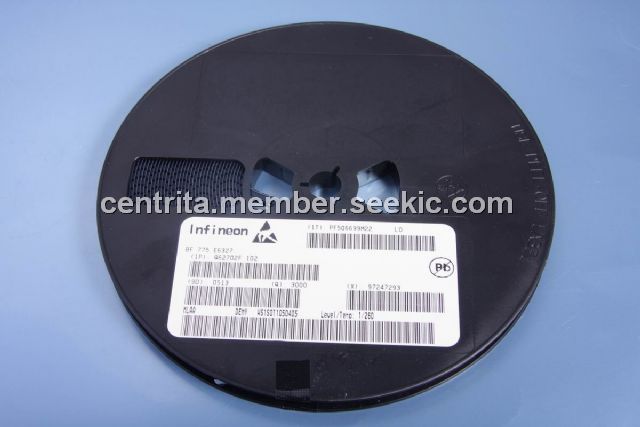

The BF775E6327 is NPN silicon RF transistor. It is especially suitable for TV-Sat and UHF tuners. It is Pb-free (RoHS compliant) package and qualified according AEC Q101.
Parametrics
Absolute maximum ratings: (1)Collector-emitter voltage, VCEO: 15V; (2)Collector-emitter voltage, VCES: 20V; (3)Collector-base voltage, VCBO: 20V; (4)Emitter-base voltage, VEBO: 2.5V; (5)Collector current, IC: 45mA; (6)Base current, IB: 4mA; (7)Total power dissipation, TS ≤ 48℃, Ptot: 280mW; (8)Junction temperature, Tj: 150℃; (9)Ambient temperature, TA: -65 to 150℃; (10)Storage temperature, Tstg: -65 to 150℃.
Features
Features: (1)NPN Silicon RF Transistor; (2)Especially suitable for TV-Sat and UHF tuners; (3)Pb-free (RoHS compliant) package1); (4)Qualified according AEC Q101.
