Product Summary
The INA-10386-TR1 is a low-noise silicon bipolar Monolithic Microwave Integrated Circuit (MMIC) 5965-9679E feedback amplifier housed in a low cost surface mount plastic package. It is designed for narrow or wide bandwidth commercial and industrial applications that require high gain and moderate power. The INA series of MMICs is fabricated using HPs 10 GHz fT, 25GHz f MAX, ISOSAT-I silicon bipolar process which uses nitride self-alignment, submicrometer lithography, trench isolation, ion implantation, gold metallization and polyimide intermetal dielectric and scratch protection to achieve excellent performance, uniformity and reliability.
Parametrics
Absolute maximum ratings: (1)Device Current: 80 mA; (2)Power Dissipation: 750 mW; (3)RF Input Power: +13 dBm; (4)Junction Temperature: 150℃; (5)Storage Temperature: –65 to 150℃.
Features
Features: (1)Cascadable 50 W Gain Block; (2)3 dB Bandwidth: DC to 1.8 GHz; (3)26 dB Typical Gain at 1.5GHz; (4)10 dBm Typical P1dB at 1.5GHz; (5)Unconditionally Stable (k>1); (6)Surface Mount Plastic Package.

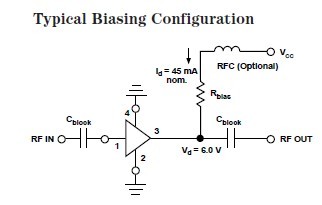

Diagrams
 |
