Product Summary

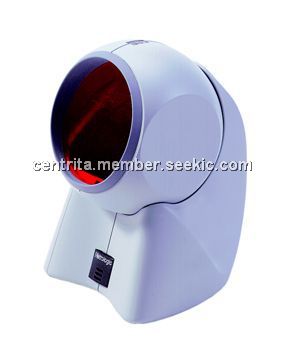

The MS7120 is an aggressive, omnidirectional laser bar code scanner ideal for use in retail, convenience, liquor and specialty stores Designed to be lightweight and rugged, Orbit’s small size makes the MS7120 ideal for applications where counter space is limited. The MS7120 unique contoured shape allows it to be picked-up and used as a hand-held scanner when scanning large or bulky items.

Parametrics

MS7120 absolute maximum ratings: (1)Voltage Supply: 5VDC ± 0.25V; (2)Operating Power: 0.9 W; (3)Standby Power: 0.85 W; (4)Operating Current: 180 mA typical at 5VDC; (5)Standby Current: 170 mA typical at 5VDC; (6)DC Transformers: Class II; 5.2VDC @ 1A.

Features

MS7120 features: (1)Fully Automatic Scanning Operation; (2)Adjustable Scan Head; (3)User-Replaceable Single Cable Interface To Host (Powerlink Compatible); (4)Seven Beeper Tones; (5)Configurable Depth of Field; (6)Firmware updates are easily loaded into Flash memory; (7)OPOS and JPOS System Compatible; (8)Support For Common Interfaces Including USB (See Table Below); (9)Easy Bar Code Configuration.

Diagrams

MS7120 dimensions
