Product Summary

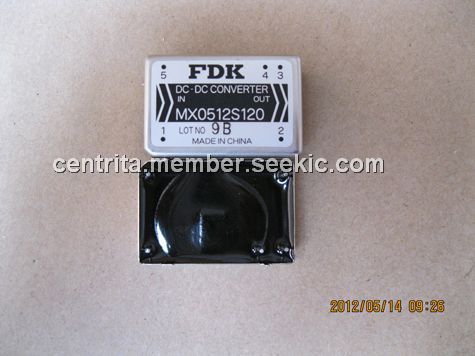

The MX0512S120 is a DC-DC converter, which is very flat with a height of only 8.5mm, are packed inside metallic casing in order to prevent radiation noise from affecting the surrounding components. The MX0512S120 is usable without attaching any external components.

Parametrics

MX0512S120 absolute maximum ratings: (1)Input voltage: DC4.5V~6.0V; (2)Output voltage: 12V; (3)Overall regulation: ±5%; (4)Output current: 0-120mA; (5)Output capacity: 1.44W; (6)Ripple/noise: 120mVp-p.

Features

MX0512S120 features: (1)Efficiency:62%; (2)Isolation: Primary-to-secondary, AC 500V, 1 min.; (3)Shielding: Metallic casing, five-surface shielding; (4)Operating temperature: –10~+70℃ (see the derating curve for 50℃ or over); (5)Non-operating temp: –20~+85℃; (6)Humidity: 95%max. (MAX wet-bulb temp. 38℃); (7)Dimensions: 33 × 22 × 8.5; (8)Shock: 100G, 6msec, XYZ directions, 3 times each; (9)Weight: 15g.

Diagrams

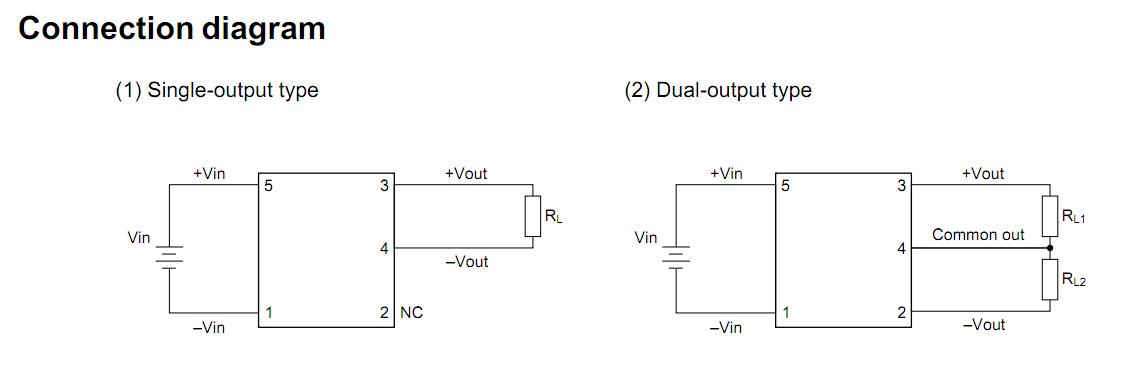

MX0512S120 connection diagram
