Product Summary

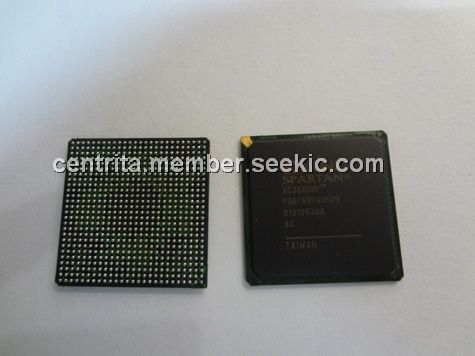

The XC3S1000-FG676BFQ is a Field-Programmable Gate Array specifically designed to meet the needs of high volume, cost-sensitive consumer electronic applications. It offers densities ranging from 50,000 to five million system gates. The XC3S1000-FG676BFQ builds on the success of the earlier Spartan-IIE family by increasing the amount of logic resources, the capacity of internal RAM, the total number of I/Os, and the overall level of performance as well as by improving clock management functions.
Parametrics
XC3S1000-FG676BFQ absolute maximum ratings: (1)Internal supply voltage relative to GND, VCCINT: –0.5 to 1.32V; (2)Auxiliary supply voltage relative to GND, VCCAUX: –0.5 to 3.00 V; (3)Output driver supply voltage relative to GND, VCCO: –0.5 to 3.75 V; (4)Input reference voltage relative to GND, VREF: –0.5 to VCCO+0.5V.
Features
XC3S1000-FG676BFQ features: (1)Low-cost, high-performance logic solution for high-volume, consumer-oriented applications; (2)SelectIO interface signaling; (3)Logic resources; (4)SelectRAM hierarchical memory; (5)Digital Clock Manager (up to four DCMs); (6)Eight global clock lines and abundant routing.
Diagrams
 |
