Product Summary

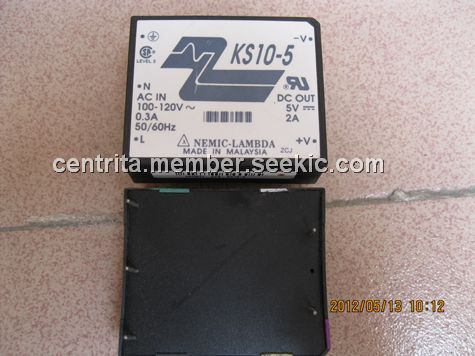

The KS10-5 is an AC-DC on-board type power supply.

Parametrics

KS10-5 absolute maximum ratings: (1)Input voltage range: 85 ~ 132VAC(47 ~ 440Hz), 110 ~ 175VDC; (2)Output voltage range: Fixed; (3)Cooling: Convection cooling; (4)Operating temperature: –10 ~ +70℃; (5)Withstand voltage: Input–output, input–FG: 2kVAC, output–FG: 500VAC for 1 min.

Features

KS10-5 features: (1)Compact on-board type AC-DC power supply Input 85 ~ 132VAC; (2)Wide Variation, Output power: 5W, 10W, 15W types; Output voltage: 5V, 12V, 15V types; (3)Over current and Over voltage protection; (4)1 year warranty.

Diagrams

KS10-5 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
KS10-5
KS10-5
TDK-Lambda
Linear and Switching Power Supplies 5V 2A
Data Sheet
0-1: $43.80
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
KS10-12
KS10-12
TDK-Lambda
Linear and Switching Power Supplies 12V 0.9A
Data Sheet
0-1: $43.80
KS103G2
KS103G2

THERMISTORS 10000 OHM +/-0.10C
Data Sheet
0-1: $10.32
1-10: $6.77
10-25: $5.81
25-100: $3.87
100-250: $1.94
250-500: $1.61
KS103J2
KS103J2

THERMISTORS 10000 OHM +/-0.10C
Data Sheet
0-1: $7.92
1-10: $5.20
10-25: $4.46
25-100: $2.97
100-250: $1.49
250-500: $1.24
KS10-5
KS10-5
TDK-Lambda
Linear and Switching Power Supplies 5V 2A
Data Sheet
0-1: $43.80
