Product Summary

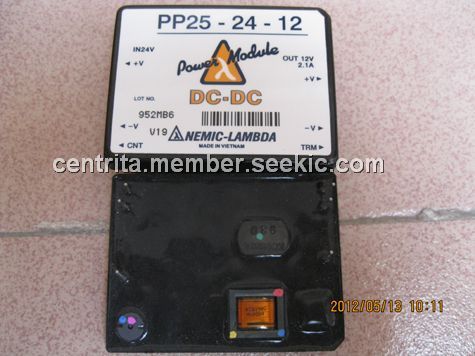

The PP25-24-12 is a single output DC-DC converter 1.5W ~ 25W, which output power 3 W. While the Nominal input voltage 48 V and Nominal output voltage 1212 V, the withstand voltage of PP25-24-12 is Input–output, Input–case: 500VAC for 1 min. What’s more, it’s over current protection, PP15, PP25: Remote on/off control & over voltage protection.

Parametrics

PP25-24-12 absolute maximum ratings: (1)Input voltage range: DC5V input: DC4.5 ~ 7.2V, DC12V input: DC8 ~ 16.5V, DC24V input: DC18 ~ 32V, DC48V input: DC32 ~ 63V; (2)Output voltage range: Fixed; (3)Cooling: Convection cooling; (4)Operating ambient temperature: –20 ~ +71℃.

Features

PP25-24-12 features: (1)Compact and single output DC-DC converter Ultra-thin profile: 8mm; (2)Operating temperature: –20 ~ +71℃; (3)Isolation between input and output; (4)PP15, PP25: Output voltage variable, on/off control; (5)3 year warranty.

Diagrams

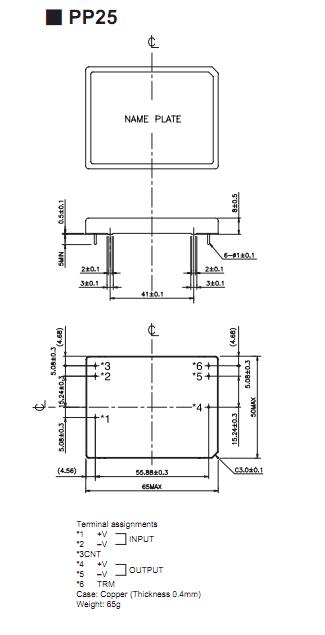

PP25-24-12 dimensions
