Product Summary

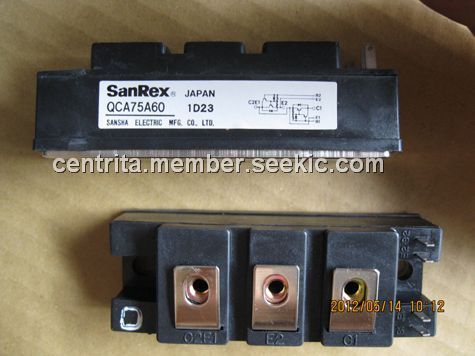

The QCA75A60 is a dual Darlington power transistor module which has series-connected high speed, high power Darlington transistors. Each transistor has a reverse paralleled fast recovery diode. The QCA75A60 is suitable for Motor Control(VVVF), AC/DC Servo, UPS, Switching Power Supply, Ultrasonic Application.
Parametrics
QCA75A60 absolute maximum ratigs: (1)VCBO, Collector-Base Voltage: 600 V; (2)VCEX, Collector-Emitter Voltage: 600 V; (3)Emitter-Base Voltage, VEBO: 10V; (4)IC, Collector Current: 150A; (5)-IC, Reverse Collector Current: 75 A; (6)IB, Base Current: 4.5 A; (7)PT, Total power dissipation: 350 W; (8)Tj, Junction Temperature: -40 to 150℃; (9)Tstg, Storage Temperature: -40 to 125℃; (10)VISO, Isolation Voltage: 2500 V.
Features
QCA75A60 features: (1)IC=75A, VCEX=600V; (2)Low saturation voltage for higher efficiency; (3)Isolated mounting base; (4)VEBO 10V for faster switching speed.
