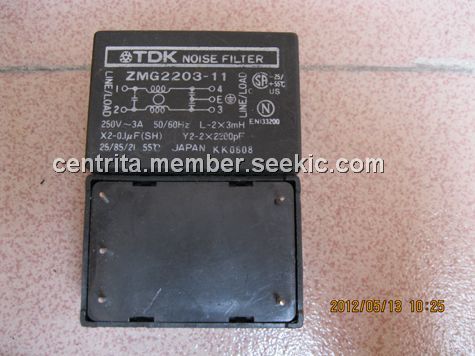

Product Summary
The ZMG2203-11 is an EMC Filter for AC Power Line. The applications of the device include Computer terminals, office automation equipment, digital applied devices (ECRs, electronic calculators, electronic scales, etc.), control devices, measurement devices, and any other devices that require a miniaturized filter.
Parametrics
ZMG2203-11 absolute maximum ratings: (1)Rated voltage Eac(V): 250; (2)Rated current(A): 0.5; (3)Test voltage Eac(V): 1500; (4)Insulation resistance(MΩ): 100min; (5)Leakage current(mA)[250V 60Hz]: 0.5max; (6)DC resistance(mΩ): 450max; (7)Operating temperature range(℃):–25 to +85; (8)With derating over(℃): 55; (9)Temperature rise(℃): 30max; (10)Attenuation frequency range (MHz):[+5 to +35℃]; (11)Differential mode at 30dB: 0.45 to 10; (12)Common mode at 30dB: 0.1 to 10; (13)Weight(g): 36.
Features
ZMG2203-11 features: (1)The ZMG series EMC filters exhibit outstanding attenuation characteristics with respect to both differential mode and common mode noise components in the MF and HF bands; (2)Small, high performance, this series demonstrates superior attenuation effects for low frequency band noise components under 1MHz. It is therefore suitable for conform to FCC and VDE standards relating to switching power supply use devices; (3)Current leakage is maintained at less than 0.5mA; (4)Efficient manufacturing makes these filters highly cost-effective; (5)ZMG-M series is compact on-board type; (6)It is a product conforming to RoHS directive.

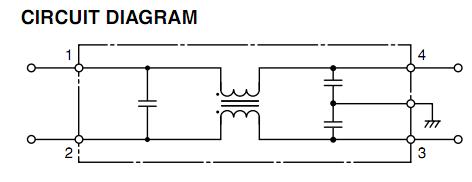

Diagrams
